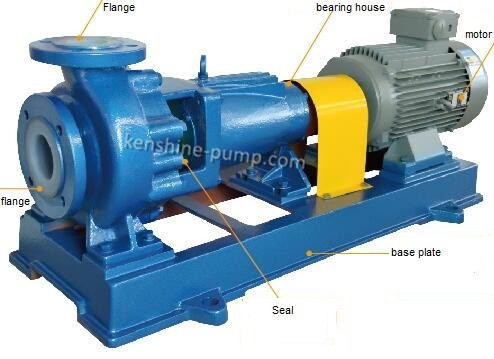

IHF Fluoroplastic Lined Centrifugal Pump

IHF Series single stage single suction fluoroplastic alloy centrifugal pump in chemical industry is manufactured as international design and principle of nonmetal pump. The pump has the advantages such as anticorrosion and wearable and anti-high temperature and no aging and high mechanical strength and no toxin decomposer etc. Liquid temperature: -50℃-200℃

Characteristic:
IHF pump body is metal shell with FEP(F-46) lining. Impeller and pump cover are punched by metal with fluoroplastic lining. Shaft seal bellows mechanical seal set outside. Seal ring is made of Silicone carbide. Rotary ring is made of gland packing Teflon or silicone carbide. The advance structure insures anticorrosion and strict seal and low noise and long life etc.

The pump is widely used to transport the liquids and waste water and add the acid etc in chemical industry and petroleum and pharmacy and electricity and food and environment protection and metallurgy and mine and acid cleaning and making paper etc The pump is very suitable to transport the random density acid, alkali and strong oxidant and organic solvent etc corrosive mediums whose temperature is from -85℃ to 200℃.

Working conditions:
Capacity range: 3-100m3/h, Head range: 5-80m
Rotary speed: 1450r/min, 2900r/min, Medium temperature: -50℃~200℃

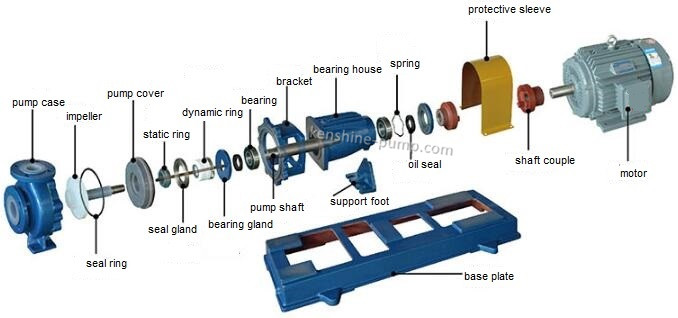

No

Name

No

Name

1

Pump body

7

 Gland packing

2

Impeller framework

8

Stationary ring

3

  Impeller

9

Rotary ring

4

Liner of pump body

10

Shaft

5

Liner of pump cover

11

Bearing

6

Pump cover





Parameter:

Model

Speed n=2900 r/min

Speed n=1450 r/min

Capacity
( m3/h)

Head
m

Power
Kw

NPSH(r) (m)

Efficiency (%)

Capacity

m3/h

Head
m

Power
Kw

NPSH(r)

 (m)

Efficiency (%)

IHF50-32-125

12.5

20

2.2

3.0

51

6.3

5

0.55

3.0

45

IHF50-32-160

12.5

32

4

3.0

46

6.3

8

0.55

3.0

40

IHF50-32-200

12.5

50

7.5

3.0

39

6.3

12.5

1.1

3.0

33

IHF65-50-125

25

20

3

3.5

62

12.5

5

0.55

3.5

55

IHF65-50-160

25

32

5.5

3.5

57

12.5

8

1.1

3.5

51

IHF65-40-200

25

50

11

3.5

52

12.5

12.5

1.5

3.5

46

IHF65-40-250

25

80

18.5

3.5

50

12.5

20

3

3.5

43

IHF80-65-125

50

20

5.5

4.0

69

25

5

1.1

4.0

64

IHF80-65-160

50

32

11

4.0

67

25

8

1.5

4.0

62

IHF80-50-200

50

50

15

4.0

63

25

12.5

2.2

4.0

57

IHF80-50-250

50

80

30

4.0

66

25

20

5.5

4.0

51

IHF100-80-125

100

20

11

4.5

77

50

5

1.5

4.5

74

IHF100-80-160

100

32

15

4.5

73

50

8

2.2

4.5

69

IHF100-65-200

100

50

30

4.5

73

50

12.5

5.5

4.5

68

IHF125-80-160

160

32

30

5.0

70

80

8

5.5

5.0

74

IHF125-100-200

200

50

55

5.0

65

100

12.5

11

5.0

71

more info
