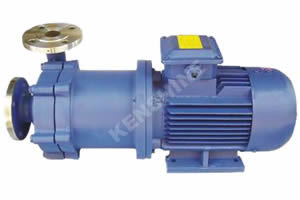

CQ Stainless Steel Magnet Pump
Magnet pump
Summary:
CQ Series magnet pump is the new centrifugal pump used with magnetic coupling. The material of magnet pump has the stainless steel and reinforced polypropylene and engineering plastic etc. The pump has the advantages of reasonable design and entire seal and no leak and anticorrosion characteristic.  The rotary seal replaces the stationary seal to insure no leak because the parts which contact with liquids are entirely sealed. Magnet pump is made of engineering plastic with anticorrosion and high strength and ceramic and stainless steel to insure good anticorrosion performance.

Magnet pump has single structure and good appearance and small volume and low noise and reliable operation. The pump is widely used to transport the acid and alkali and oil and toxin and volatile liquids in chemical industry, pharmacy, petroleum, electroplate and food, etc. It is very suitable for leaky and flammable and explosive liquids.

Structure:

1

Pump body

2

Stationary ring

3

Rotary ring

4

Impeller

5

Seal ring

6

Board

7

Isolation sleeve

8

Outer magnet assembly

9

 Inner magnet assembly

10

Shaft

11

Shaft sleeve

12

  Connector

13

Motor









Lower noise: Two bearings support the pump to insure steady operation
No trouble: Reasonable structure and key parts with good material
Convenient maintenance: It is easy to replace the seal and bearing.
Smaller space: Outlet can be toward left and right and up to plan pipeline.
Parameter:

Model

Caliber

Head
（m）

Capacity
（L/min）

Power
（KW）

Rotary speed
（r/min）

Voltage
（V）

Inlet
（mm）

Outlet（mm）

10CQ-3

10

8

3

19

0.025

2900

220

14CQ-5

14

10

5

20

0.12

2900

380

16CQ-8

16

12

8

25

0.18

2900

380

20CQ-12

20

14

12

50

0.37

2900

380

25CQ-15

25

20

15

110

1.10

2900

380

32CQ-15

32

25

15

110

1.10

2900

380

32CQ-25

32

25

25

110

1.10

2900

380

40CQ-20

40

32

20

180

2.2

2900

380

40CQ-40

40

32

40

200

4

2900

380

50CQ-25

50

40

25

240

4

2900

380

50CQ-40

50

40

40

220

4

2900

380

50CQ-50

50

40

50

130

5.5

2900

380

65CQ-25

65

50

25

280

5.5

2900

380

65CQ-35

65

50

35

450

7.5

2900

380

80CQ-35

80

65

35

850

11

2900

380

80CQ-50

80

65

50

850

15

2900

380
