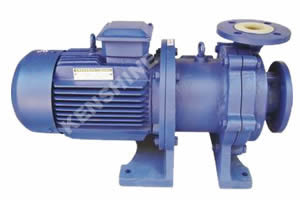

CQB-F Series Fluoroplastic magnet pump
CQB-F Series Fluoroplastic magnet pump adopts the permanent magnet into centrifugal pump. The pump has the advantages such as fully sealed and no leakage and anticorrosion etc.
CQB-F Series Fluoroplastic magnet pump is made of PVF2. The material has the good anticorrosion and high mechanism intensity and no aging and no toxin distribution etc.
The pump uses the stationary seal to substitute the rotary seal. The flow passage parts are in full seal to insure no leakage. The pump has the compact structure and good appearance and low noise and small volume and steady operation etc. |
The pump is widely used to transport acid and alkali and oil etc rare liquids and toxin and volatile liquids in chemical industry and pharmacy and electroplate and food and photo etc and water circulation system and filter system. It is especially for flammable and explosive and leaky liquids.

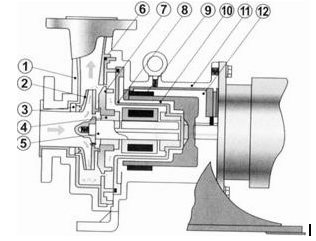

Structure:
|
1 |
Pump body |
8 |
Isolated sleeve |
|
2 |
Impeller |
9 |
Magnet assembly |
|
3 |
Ring |
10 |
Stainless steel sleeve |
|
4 |
Bearing |
11 |
Connection frame |
|
5 |
Shaft |
12 |
Coupling |
|
6 |
Seal ring |
|
|
|
7 |
Middle shaft seat |
|
| |
Parameter:
|
Model |
Capacity
（m3/h） |
Head
(m) |
NPSH(r)
(m) |
Speed
(r/min) |
Caliber(mm) |
Temp.
(℃) |
Voltage
(V) |
|
Inlet |
Outlet |
|
CQB16-12-18F |
1.8 |
8 |
6.0 |
2900 |
Φ16 |
Φ12 |
＜80 |
220/380 |
|
CQB20-14-100F |
3 |
12 |
6.0 |
2900 |
Φ20 |
Φ14 |
＜80 |
220/380 |
|
CQB32-25-125F |
3.2 |
20 |
5.0 |
2900 |
Φ32 |
Φ20 |
＜80 |
380 |
|
CQB40-32-115F |
6.3 |
15 |
6.0 |
2900 |
Φ40 |
Φ32 |
＜80 |
380 |
|
CQB40-32-145F |
6.3 |
25 |
5.0 |
2900 |
Φ40 |
Φ32 |
＜80 |
380 |
|
CQB50-40-125F |
12.5 |
20 |
3.5 |
2900 |
Φ50 |
Φ40 |
＜80 |
380 |
|
CQB50-40-160F |
12.5 |
32 |
3.5 |
2900 |
Φ50 |
Φ40 |
＜80 |
380 |
|
CQB65-50-125F |
25 |
20 |
4.0 |
2900 |
Φ65 |
Φ50 |
＜80 |
380 |
|
CQB65-50-160F |
25 |
32 |
4.0 |
2900 |
Φ65 |
Φ50 |
＜100 |
380 |
|
CQB80-65-125F |
50 |
20 |
4.0 |
2900 |
Φ80 |
Φ65 |
＜100 |
380 |
|
CQB80-65-160F |
50 |
32 |
4.0 |
2900 |
Φ80 |
Φ65 |
＜100 |
380 |
|
Model |
Caliber(mm) |
Flow
(m3/h) |
Head
(m) |
(NPSH)r
(m) |
Power
(kw) |
Speed
(r/min) |
Eff.
(%) |
Voltage
(v) |
|
Inlet |
Outlet |
|
CQB15-10-85F |
15 |
10 |
1.8 |
8 |
6.0 |
0.12 |
2800 |
15 |
220/380 |
|
CQB20-15-105F |
20 |
15 |
3 |
12 |
6.0 |
0.37 |
2800 |
19 |
220/380 |
|
CQB32-25-125F |
32 |
25 |
3.2 |
20 |
5.0 |
0.75 |
2900 |
26 |
380 |
|
CQB40-32-115F |
40 |
32 |
6.3 |
15 |
6.0 |
0.75 |
2900 |
35 |
380 |
|
CQB40-32-145F |
40 |
32 |
6.3 |
25 |
5.0 |
1.5 |
2900 |
29 |
380 |
|
CQB50-40-125F |
50 |
40 |
12.5 |
20 |
3.5 |
2.2 |
2900 |
41 |
380 |
|
CQB50-40-160F |
50 |
40 |
12.5 |
32 |
3.5 |
3 |
2900 |
39 |
380 |
|
CQB65-50-125F |
65 |
50 |
25 |
20 |
4.0 |
3 |
2900 |
47 |
380 |
|
CQB65-50-160F |
65 |
50 |
25 |
32 |
4.0 |
5.5 |
2900 |
46 |
380 |
|
CQB80-65-125F |
80 |
65 |
50 |
20 |
4.0 |
7.5 |
2900 |
54 |
380 |
|
CQB80-65-160F |
80 |
65 |
50 |
32 |
4.0 |
11 |
2900 |
52 |
380 |
|
CQB100-80-125F |
100 |
80 |
100 |
20 |
4.0 |
11 |
2900 |
55 |
380 |
|
CQB100-80-160F |
100 |
80 |
100 |
32 |
4.0 |
18.5 |
2900 |
56 |
380 | |
