TSWA Horizontal Multistage Centrifugal Pump

TSWA Series horizontal multistage centrifugal pump
TSWA Series multistage centrifugal pump has the advantages of energy saving and high efficiency and long life etc. TSWA Series horizontal multistage centrifugal pump is used to transport clear water which temperature is below 80℃ and liquids similar to water in physical and chemical characteristic.
Capacity range: =15～191m3/h, Head range: =17～247m , Speed :1450rpm.

The pump is widely used for water supply and discharge in city and factory and mine etc. It is specially in water supply in restaurant and air conditions system etc.

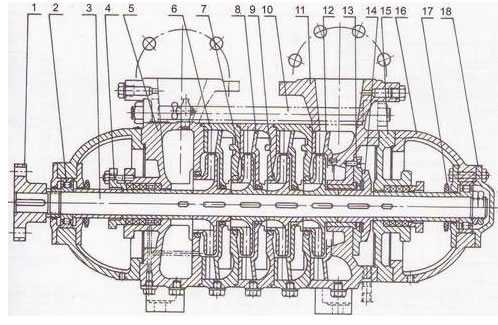

Structure:

1.Coupling 2.Bearing 3.Shaft 4. Packing gland 5.Suction 6.Medium parts 7. Impeller
8. Guide vane 9.Wear ring 10. Connection bolt 11. Outlet part 12. Discharge guide vane 13. Balance board
14. Balance plate 15.Stuffing box 16.Bearing body 17. Baffle 18. Bearing gland

Parameter:

Model	Stage	Capacity		Head (m)	Motor power (KW)	Suction height (m)
Model	Stage	（m³/h）	（L/S）	Head (m)	Motor power (KW)	Suction height (m)
50TSWA	2	18	5	18.4	2.2	7.2
	3	18	5	27.6	3
	4	18	5	36.8	4
	5	18	5	46	5.5
	6	18	5	55.2	5.5
	7	18	5	64.4	7.5
	8	18	5	73.6	7.5
	9	18	5	82.8	7.5
75TSWA	2	36	10	23	5.5	7.2
	3	36	10	34.5	7.5
	4	36	10	46	11
	5	36	10	57.5	11
	6	36	10	69	15
	7	36	10	80.5	15
	8	36	10	92	18.5
	9	36	10	103.5	18.5
100TSWA	2	69	19.2	31.2	11	7
	3	69	19.2	46.8	15
	4	69	19.2	62.4	22
	5	69	19.2	78	30
	6	69	19.2	93.6	30
	7	69	19.2	109.2	37
	8	69	19.2	124.8	45
	9	69	19.2	140.4	45
125TSWA	2	90	25	43.2	22	6.8
	3	90	25	64.8	30
	4	90	25	86.4	45
	5	90	25	108	55
	6	90	25	129.6	75
	7	90	25	151.2	75
	8	90	25	172.8	90
	9	90	25	194.4	90
150TSWA	2	155	43	60	45	7.7
	3	155	43	90	75
	4	155	43	120	90
	5	155	43	150	110
	6	155	43	180	132
	7	155	43	210	155
	8	155	43	240	180
	9	155	43	270	180
