ISWH Series horizontal stainless steel centrifugal monoblock pump

ISWH Series horizontal stainless steel monoblock pump

Summary:

ISWH Series horizontal chemical pump is for stainless steel monoblock centrifugal chemical pump. The pump is suitable to transfer the corrosive liquids without solid particles. So the pump is widely used in petroleum, chemical industry, metallurgy, electric power, papermaking, foodstuff, pharmaceuticals and synthetic fiber etc.  Operation temperature:-20 to 120 degree Celsius.

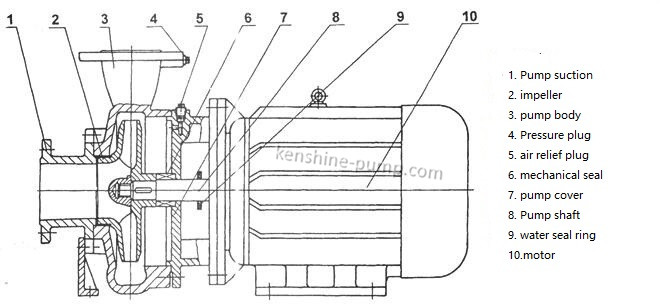

Pump Structure:

Parameter:

Pump specification sheet:

Model Caliber Flow rate Head Efficiency Speed Motor power NPSH®
mm m3/h L/S m % r/min KW m
15-80 15 1.1 0.3 8.5 26 2800 0.18 2.3
1.5 0.42 8 34
2 0.55 7 34
20-110 20 1.8 0.5 16 25 2800 0.37 2.3
2.5 0.69 15 34
3.3 0.91 13.5 35
20-160 20 1.8 0.5 33 19 2900 0.75 2.3
2.5 0.69 32 25
3.3 0.91 30 23
25-110 25 2.8 0.78 16 34 2900 0.55 2.3
4 1.11 15 42
5.2 1.44 13.5 41
25-125 25 2.8 0.78 20.6 28 2900 0.75 2.3
4 1.11 20 36
5.2 1.44 18 35
25-125A 25 2.5 0.69 17 35 2900 0.55 2.3
3.6 1 16
4.6 1.28 14.4
25-160 25 2.8 0.78 33 24 2900 1.5 2.3
4 1.11 32 32
5.2 1.44 30 33
25-160A 25 2.6 0.12 29 31 2900 1.1 2.3
3.7 1.03 28
4.9 1.36 26
32-100(I) 32 4.4 1.22 13.2 48 2900 0.75 2
6.3 1.75 12.5 54
8.3 2.32 11.3 53
32-125 32 3.5 0.97 22 40 2900 0.75 2.3
5 0.39 20 44
6.5 1.8 18 42
32-125A 32 3.1 0.86 17.6 43 2900 0.55 2.3
4.5 1.25 16
5.8 1.61 14.4
32-160(I) 32 4.4 1.22 33.2 34 2900 2.2 2
6.3 1.75 32 40
8.3 2.32 30.2 42
32-200(I) 32 4.4 1.22 50.5 26 2900 4 2
6.3 1.75 50 33
8.3 2.32 48 35
32-200A 32 2.8 0.78 44.6 34 2900 2.2 2
4 1.11 44 40
5.2 1.44 42.7 42
40-100 40 4.4 1.22 13.2 48 2900 0.55 2.3
6.3 1.75 12.5 54
8.3 2.31 11.3 53
40-100A 40 3.9 1.08 10.6 52 2900 0.37 2.3
5.6 1.56 10
7.4 2.06 9
40-125 40 4.4 1.22 21 41 2900 1.1 2.3
6.3 1.75 20 46
8.3 2.31 18 43
40-125A 40 3.9 1.08 17.6 40 2900 0.75 2.3
5.6 1.56 16 45
7.4 2.06 14.4 41
40-160 40 4.4 1.22 33 35 2900 2.2 2.3
6.3 1.75 32 40
8.3 2.31 30 40
40-160A 40 4.1 1.14 29 34 2900 1.5 2.3
5.9 1.64 28 39
7.8 2.17 26.3 39
40-160B 40 3.8 1.06 25.5 34 2900 1.1 2.3
5.5 1.53 24 38
7.2 2 22.5 37
40-200 40 4.4 1.22 51 26 2900 4 2.3
6.3 1.75 50 33
8.3 2.31 48 32
40-200A 40 4.1 1.14 45 26 2900 3 2.3
5.9 1.64 44 31
7.8 2.17 42 30
40-200B 40 3.7 1.03 38 29 2900 2.2 2.3
5.3 1.47 36
7 1.94 34.5
40-250 40 4.4 1.22 82 24 2900 7.5 2.3
6.3 1.75 80 28
8.3 2.31 74 28
40-250A 40 4.1 1.14 72 24 2900 5.5 2.3
5.9 1.64 70 28
7.8 2.17 65 27
40-250B 40 3.8 1.06 61.5 23 2900 4 2.3
5.5 1.53 60 27
7 1.94 56 26
40-100(I) 40 8.8 2.44 13.2 55 2900 1.1 2.3
12.5 3.47 12.5 62
16.3 4.53 11.3 60
40-100(I)A 40 8 2.22 10.6 60 2900 0.75 2.3
11 3.05 10
14.5 4.03 9
40-125(I) 40 8.8 2.44 21.2 49 2900 1.5 2.3
12.5 3.47 20 58
16.3 4.53 17.8 57
40-125(I)A 40 8 2.22 17 57 2900 1.1 2.3
11 3.05 16
14.5 4.03 14
40-160(I) 40 8.8 2.44 33 45 2900 3 2.3
12.5 3.47 32 52
16.3 4.53 30 51
40-160(I)A 40 8.2 2.28 29 44 2900 2.2 2.3
11.7 3.25 28 51
15.2 4.22 26 50
40-160(I)B 40 7.3 2.38 23 50 2900 1.5 2.3
10.4 2.89 22
13.5 3.75 20.5
40-200(I) 40 8.8 2.44 51.2 38 2900 5.5 2.3
12.5 3.47 50 46
16.3 4.53 48 46
40-200(I)A 40 8.3 2.31 45 37 2900 4 2.3
11.7 3.25 44 45
15.3 4.25 42 45
40-200(I)B 40 7.5 2.08 37 44 2900 3 2.3
10.6 2.94 36
13.8 3.83 34
40-250(I) 40 8.8 2.44 81.2 31 2900 11 2.3
12.5 3.47 80 38
16.3 4.53 77.5 40
40-250(I)A 40 8.2 2.28 71 38 2900 7.5 2.3
11.6 3.22 70
15.2 4.22 68
40-250(I)B 40 7.6 2.11 61.4 37 2900 7.5 2.3
10.8 3 60
14 3.89 58
40-250(I)C 40 7.1 1.97 53.2 36 2900 5.5 2.3
10 2.78 52
13.1 3.64 50.4
50-100 50 8.8 2.44 13.6 55 2900 1.1 2.3
12.5 3.47 12.5 62
16.3 4.53 11.3 60
50-100A 50 8 2.22 11 60 2900 0.75 2.3
11 3.05 10
14.5 4.03 9
50-125 50 8.8 2.44 21.5 49 2900 1.5 2.3
12.5 3.47 20 58
16.3 4.53 17.8 57
50-125A 50 8 2.22 17 57 2900 1.1 2.3
11 3.05 16
14.5 4.03 14
50-160 50 8.8 2.44 33 45 2900 3 2.3
12.5 3.47 32 52
16.3 4.53 30 51
50-160A 50 8.2 2.28 29 44 2900 2.2 2.3
11.7 3.25 28 51
15.2 4.22 26 50
50-160B 50 7.3 2.38 23 50 2900 1.5 2.3
10.4 2.89 22
13.5 3.75 20.5
50-200 50 8.8 2.44 52 38 2900 5.5 2.3
12.5 3.47 50 46
16.3 4.53 48 46
50-200A 50 8.3 2.31 45.8 37 2900 4 2.3
11.7 3.25 44 45
15.3 4.25 42 45
50-200B 50 7.5 2.08 37 44 2900 3 2.3
10.6 2.94 36
13.8 3.83 34
50-250 50 8.8 2.44 82 29 2900 11 2.3
12.5 3.47 80 38
16.3 4.53 77.5 40
50-250A 50 8.2 2.28 71.5 38 2900 7.5 2.3
11.6 3.22 70
15.2 4.22 68
50-250B 50 7.6 2.11 61.4 37 2900 7.5 2.3
10.8 3 60
14 3.89 58
50-250C 50 7.1 1.97 53.2 36 2900 5.5 2.3
10 2.78 52
13.1 3.64 50.4
50-100(I) 50 17.5 4.86 13.7 67 2900 1.5 2.5
25 6.94 12.5 69
32.5 9.03 10.5 69
50-100(I)A 50 15.6 4.3 11 65 2900 1.1 2.5
22.3 6.19 10 67
29 8.1 8.4 68
50-125(I) 50 17.5 4.86 21.5 60 2900 3 2.5
25 6.94 20 68
32.5 9.03 18 67
50-125(I)A 50 15.6 4.33 17 58 2900 2.2 2.5
22.3 6.19 16 66
29 8.1 13.6 65
50-160(I) 50 17.5 4.68 34.4 54 2900 4 2.5
25 6.94 32 63
32.5 9.03 27.5 60
50-160(I)A 50 16.4 4.56 30 54 2900 4 2.5
23.4 6.5 28 62
30.4 8.44 24 59
50-160(I)B 50 15 4.17 26 58 2900 3 2.5
21.6 6 24
28 7.78 20.6
50-200(I) 50 17.5 4.86 52.7 49 2900 7.5 2.5
25 6.94 50 58
32.5 9.03 45.5 59
50-200(I)A 50 16.4 4.56 46.4 48 2900 7.5 2.5
23.5 6.53 44 57
30.5 8.47 40 58
50-200(I)B 50 15.2 4.22 40 55 2900 5.5 2.5
21.8 6.06 38
28.3 7.86 34.5
50-250(I) 50 17.5 4.86 82 39 2900 15 2.5
25 6.94 80 50
32.5 9.03 76.5 52
50-250(I)A 50 16.4 4.56 71.5 39 2900 11 2.5
23.4 6.5 70 50
30.5 8.47 67 52
50-250(I)B 50 15 4.17 61 38 2900 11 2.5
21.6 6 60 49
28 7.78 57.4 54
50-315(I) 50 17.5 4.86 128 30 2900 30 2.5
25 6.94 125 40
32.5 9.03 122 44
50-315(I)A 50 16.6 4.61 115 30 2900 22 2.5
23.7 6.58 113 40
31 8.6 110 44
50-315(I)B 50 15.7 4.36 103 39 2900 18.5 2.5
22.5 6.25 101
29.2 8 98
50-315(I)C 50 14.4 4 86 38 2900 15 2.5
20.6 5.72 85
26.8 7.44 83
65-100 65 17.5 4.86 13.7 67 2900 1.5 2.5
25 6.94 12.5 69
32.5 9.03 10.5 69
65-100A 65 15.6 4.3 11 65 2900 1.1 2.5
22.3 6.19 10 67
29 8.1 8.4 68
65-125 65 17.5 4.86 21.5 60 2900 3 2.5
25 6.94 20 68
32.5 9.03 18 67
65-125A 65 15.6 4.33 17 58 2900 2.2 2.5
22.3 6.19 16 66
29 8.1 14.4 65
65-160 65 17.5 4.86 34.4 54 2900 4 2.5
25 6.94 32 63
32.5 9.03 27.5 60
65-160A 65 16.4 4.56 30 54 2900 4 2.5
23.4 6.5 28 62
30.4 8.44 24 59
65-160B 65 15 4.17 26 58 2900 3 2.5
21.6 6 24
28 7.78 20.6
65-200 65 17.5 4.86 52.7 49 2900 7.5 2.5
25 6.94 50 58
32.5 9.03 45.5 59
65-200A 65 16.4 4.56 46.4 48 2900 7.5 2.5
23.5 6.53 44 57
30.5 8.47 40 58
65-200B 65 15.2 4.22 40 55 2900 5.5 2.5
21.8 6.06 38
28.3 7.86 34.5
65-250 65 17.5 4.86 82 39 2900 15 2.5
25 6.94 80 50
32.5 9.03 76.5 52
65-250A 65 16.4 4.56 71.5 39 2900 11 2.5
23.4 6.5 70 50
30.5 8.47 67 52
65-250B 65 15 4.17 61 38 2900 11 2.5
21.6 6 60 49
28 7.78 57.4 54
65-315 65 17.5 4.86 127 32 2900 30 2.5
25 6.94 125 40
32.5 9.03 122 44
65-315A 65 16.6 4.61 115 32 2900 22 2.5
23.7 6.58 113 40
31 8.6 110 44
65-315B 65 15.7 4.36 103 39 2900 18.5 2.5
22.5 6.25 101
29.2 8 98
65-315C 65 14.4 4 86 38 2900 15 2.5
20.6 5.72 85
26.8 7.44 83
65-100(I) 65 35 9.72 13.8 67 2900 3 3
50 13.9 12.5 73
65 18.1 10 70
65-100(I)A 65 31.3 8.7 11 66 2900 2.2 3
44.7 12.4 10 72
58 16.1 8 69
65-125(I) 65 35 9.72 22 67 2900 5.5 3
50 13.9 20 72.5
65 18.1 17 70
65-125(I)A 65 31.3 8.7 17.5 66 2900 4 3
44.7 12.5 16 71
58 16.1 13.6 69
65-160(I) 65 35 9.72 35 63 2900 7.5 3
50 13.9 32 71
65 18.1 28 70
65-160(I)A 65 32.7 9.1 30.6 62 2900 7.5 3
46.7 13 28 70
61 16.9 24 69
65-160(I)B 65 30.3 8.4 26 69 2900 5.5 3
43.3 12 24
56.3 15.6 21
65-200(I) 65 35 9.72 53.5 55 2900 15 3
50 13.9 50 67
65 18.1 46 68
65-200(I)A 65 32.8 9.1 47 54 2900 11 3
47 13.1 44 66
61 16.9 40 67
65-200(I)B 65 30.5 8.5 40.6 65 2900 7.5 3
43.5 12.1 38
56.6 15.7 33.4
65-250(I) 65 35 9.72 83 52 2900 22 3
50 13.9 80 59
65 18.1 72 60
65-250(I)A 65 32.5 9 73 52 2900 18.5 3
46.7 13 70 59
61 16.9 63 60
65-250(I)B 65 30 8.3 62 58 2900 15 3
43.3 12 60
56 15.6 54
65-315(I) 65 35 9.72 128 44 2900 37 3
50 13.9 125 54
65 18.1 121 57
65-315(I)A 65 32.5 9 112.6 43 2900 30 3
46.5 12.9 110 54
60.5 16.8 106.4 57
65-315(I)B 65 31 8.6 102.5 53 2900 30 3
44.5 12.4 100
58 16.1 98
65-315(I)C 65 29 8.1 87 51 2900 22 3
41 11.4 85
53.6 14.9 83
80-100 80 35 9.72 13.8 67 2900 3 3
50 13.9 12.5 73
65 18.1 10 70
80-100A 80 31.3 8.7 11 66 2900 2.2 3
44.7 12.5 10 72
58 16.1 8 69
80-125 80 35 9.72 22 67 2900 5.5 3
50 13.9 20 72.5
65 18.1 17 70
80-125A 80 31.3 8.7 17.5 66 2900 4 3
45 12.5 16 71
58 16.1 13.6 69
80-160 80 35 9.72 35 63 2900 7.5 3
50 13.9 32 71
65 18.1 28 70
80-160A 80 32.7 9.1 30.6 62 2900 7.5 3
46.7 13 28 70
61 16.9 24 69
80-160B 80 30.3 8.4 26 69 2900 5.5 3
43.3 12 24
56.3 15.6 21
80-200 80 35 9.72 53.5 55 2900 15 3
50 13.9 50 67
65 18.1 46 68
80-200A 80 32.8 9.1 47 54 2900 11 3
47 13.1 44 66
61 16.9 40 67
80-200B 80 30.5 8.5 40.6 65 2900 7.5 3
43.5 12.1 38
56.6 15.7 33.4
80-250 80 35 9.72 83 52 2900 22 3
50 13.9 80 59
65 18.1 72 60
80-250A 80 32.5 9 73 52 2900 18.5 3
46.7 13 70 59
61 16.9 63 60
80-250B 80 30 8.3 62 58 2900 15 3
43.3 12 60
56 15.6 54
80-315 80 35 9.72 128 43 2900 37 3
50 13.9 125 54
65 18.1 122 57
80-315A 80 32.5 9 112.6 43 2900 30 3
46.5 12.9 110 54
60.5 16.8 107.4 57
80-315B 80 31 8.6 102.5 53 2900 30 3
44.5 12.4 100
58 16.1 98
80-315C 80 29 8.1 98 51 2900 22 3
41 11.4 85
53.6 14.9 83
80-350 80 35 9.72 146 55 2900 55 3
50 13.9 150 66
65 18.1 142 67
80-350A 80 31 8.6 138.4 65 2900 45 3
44.5 12.4 142
58 16.1 134.8
80-350B 80 29 8.1 131.4 63 2900 37 3
41 11.4 135
53.6 14.9 127.8
80-100(I) 80 70 19.4 13.6 66 2900 5.5 4.5
100 27.8 12.5 76
130 36.1 11 75
80-100(I)A 80 62.6 17.4 11 64 2900 4 4.5
89 24.7 10 74
116 32.2 8.8 74
80-125(I) 80 70 19.4 23.5 70 2900 11 4.5
100 27.8 20 76
130 36.1 14 65
80-125(I)A 80 62.6 17.4 19 68 2900 7.5 4.5
89 24.7 16 74
116 32.2 11 65
80-160(I) 80 70 19.4 36.5 70 2900 15 4.5
100 27.8 32 76
130 36.1 24 65
80-160(I)A 80 65.4 18.2 32 68 2900 11 4.5
93.5 26 28 74
121.6 33.8 21 67
80-160(I)B 80 60.6 16.8 72 72 2900 11 4.5
86.6 24.1 24
112.5 31.3 18
80-200(I) 80 70 19.4 54 65 2900 22 4
100 27.8 50 74
130 36.1 42 73
80-200(I)A 80 65.4 18.2 47.5 64 2900 18.5 4
93.5 26 44 73
121.6 33.8 37 72
80-200(I)B 80 61 16.9 41 71 2900 15 4
87 24.2 38
113 31.4 32
80-250(I) 80 70 19.4 87 62 2900 37 4
100 27.8 80 69
130 36.1 68 68
80-250(I)A 80 65.4 18.2 76 61 2900 30 4
93.5 26 70 68
121.6 33.8 59.5 67
80-250(I)B 80 61 16.9 65 66 2900 30 4
87 24.2 60
113 31.4 51
80-315(I) 80 70 19.4 132 55 2900 75 4
100 27.8 125 66
130 36.1 114 67
80-315(I)A 80 66.5 18.5 119 55 2900 55 4
95 26.4 113 66
123.6 34.3 103 67
80-315(I)B 80 63 17.5 106.6 65 2900 45 4
90 25 101
117 32.5 92
80-315(I)C 80 58 16.1 90 63 2900 37 4
82 22.8 85
107 29.7 76
100-100 100 70 19.4 13.6 66 2900 5.5 4.5
100 27.8 12.5 76
130 36.1 11 75
100-100A 100 62.6 17.4 11 64 2900 4 4.5
89 47 10 74
116 32.2 8.8 74
100-125 100 70 19.4 23.5 70 2900 11 4.5
100 27.8 20 76
130 36.1 14 65
100-125A 100 62.6 17.4 19 68 2900 7.5 4.5
89 24.7 16 74
116 32.2 11 63
100-160 100 70 19.4 36.5 70 2900 15 4.5
100 27.8 32 76
130 36.1 24 65
100-160A 100 65.4 18.2 32 68 2900 11 4.5
93.5 26 28 74
121.6 33.8 21 67
100-160B 100 60.6 16.8 27 72 2900 11 4.5
86.6 24.1 24
112.5 31.3 18
100-200 100 70 19.4 54 65 2900 22 4
100 27.8 50 74
130 36.1 42 73
100-200A 100 65.4 18.2 47.5 64 2900 18.5 4
93.5 26 44 73
121.6 33.8 37 72
100-200B 100 61 16.9 41 71 2900 15 4
87 24.2 38
113 31.4 32
100-250 100 70 19.4 37 62 2900 37 4
100 27.8 80 69
130 36.1 68 68
100-250A 100 65.4 18.2 76 61 2900 30 4
93.5 26 70 68
121.6 33.8 59.5 67
100-250B 100 61 16.9 65 66 2900 30 4
87 24.2 60
113 31.4 51
100-315 100 70 19.4 132 55 2900 75 4
100 27.8 125 66
130 36.1 114 67
100-315A 100 66.5 18.5 119 65 2900 55 4
95 26.4 113 66
123.6 34.3 103 67
100-315B 100 63 17.5 106.6 65 2900 45 4
90 25 101
117 32.5 92
100-315C 100 58 16.1 90 63 2900 37 4
82 22.8 85
107 29.7 76
100-100(I) 100 96 26.7 14 64 2900 11 4.5
160 44.4 12.5 73
192 53.3 10 70
100-125(I) 100 96 26.7 24 62 2900 15 4.5
160 44.4 20 74
192 53.3 14 69
100-125(I)A 100 84 23.3 20 64 2900 11 4.5
140 39 17 72
168 46.7 12 68
100-160(I) 100 96 26.7 36 69 2900 22 5.6
160 44.4 32 79
192 53.3 27 75
100-160(I)A 100 84 23.3 32 66 2900 18.5 5
140 39 28 76
168 46.7 23.5 72
100-200(I) 100 96 26.7 53 69 2900 37 5.2
160 44.4 50 79
192 53.3 45 78
100-200(I)A 100 84 23.3 48 64 2900 30 4.5
140 39 45 74
168 46.7 40 73
100-200(I)B 100 60 16.7 43 72 2900 22 4.5
100 27.8 40
120 33.3 36
100-250(I) 100 96 26.7 83 65 2900 55 4.8
160 44.4 80 77
192 53.3 72 74
100-250(I)A 100 84 23.3 75 60 2900 45 4.5
140 39 72 72
168 46.7 65 69
100-250(I)B 100 60 16.7 68 70 2900 37 4.5
100 27.8 65
120 33.3 58
100-350 100 60 16.7 153.6 72 2900 90 4
100 27.8 150 57
120 33.3 142 74
100-350A 100 61 16.9 145.6 75 2900 75 4
87 24.2 142
113 31.4 134
100-350B 100 58 16.1 138.6 75 2900 55 4
82 22.8 135
107 29.7 127
125-100 125 96 26.7 13 82 2900 11 4
160 44.4 12.5
192 53.3 12
125-100A 125 86 23.9 10.4 77 2900 7.5 4
143 39.7 10
172 47.8 9.6
125-125 125 96 26.7 22.6 80 2900 15 4
160 44.4 20
192 53.3 17
125-125A 125 86 23.9 18 77 2900 11 4
143 39.7 16
172 47.8 13.6
125-160 125 96 26.7 36 78 2900 22 4
160 44.4 32
192 53.3 28
125-160A 125 90 25 31.5 76 2900 18.5 4
150 41.7 28
180 50 24.5
125-160B 125 83 21.7 27 73 2900 15 4
138 38.3 24
166 46.1 21
125-200 125 96 26.7 55 77 2900 37 5.5
160 44.4 50
192 53.3 46
125-200A 125 90 25 48.4 76 2900 30 5.5
150 41.7 44
180 50 40.5
125-200B 125 83 21.7 41.3 75 2900 22 5.5
138 38.3 37.5
166 46.1 34.5
125-250 125 96 26.7 87 75 2900 55 5
160 44.4 80
192 53.3 73
125-250A 125 90 25 76 74 2900 45 5.5
150 41.7 70
180 50 84
125-250B 125 83 21.7 65 73 2900 37 5.5
138 38.3 60
166 46.1 55
125-315 125 96 26.7 133 70 2900 90 5
160 44.7 125
192 53.3 119
125-315A 125 90 25 117 70 2900 75 5
150 41.7 110
180 50 104.6
125-315B 125 86 23.9 106.4 69 2900 75 5
143 39.7 100
172 47.8 95.2
125-315C 125 80.5 22.4 96 67 2900 55 5
134 37.2 88
161 44.7 86
150-125 150 96 26.7 22.6 66 2900 11 4
160 44.4 24 76
192 53.3 17 76
150-125A 150 90 25 18 77 2900 7.5 4
150 41.7 16
180 50 13.6
150-160 150 96 26.7 36 75 2900 22 4
160 44.4 32
192 53.3 27
150-160A 150 90 25 32 76 2900 18.5 4
150 41.7 28
180 50 23.5
150-160B 150 84 23.3 27 73 2900 15 4
140 39 24
168 46.7 21
150-200 150 140 38.9 13.8 68 1450 15 3
200 55.6 12.5 78
260 72.2 10.6 78
150-200A 150 125 34.7 11 66 1450 11 3
176 49.7 10 76
232.5 64.6 8.5 76
150-200B 150 84 23.3 41 75 2900 22 4
140 39 38
168 46.7 34
150-250 150 140 38.9 21.8 73 1450 18.5 3
200 55.6 20 79
260 72.2 17 77
150-250A 150 129 35.8 18.5 72 1450 15 3
184.4 51.2 17 78
240 66.7 14.4 76
150-250B 150 117 32.5 15.2 76 1450 11 3
167 46.4 14
217.5 60.4 12
150-315 150 140 38.9 33.8 70 1450 30 2.5
200 55.6 32 78
260 72.2 28 73
150-315A 150 131 36.4 29.5 69 1450 22 3.5
187 51.9 28 77
243 67.5 24.5 77
150-315B 150 121 33.5 25 76 1450 18.5 3.5
173 48.1 24
225 62.5 21
150-350 150 96 26.7 153.6 80 2900 110 5.5
160 44.4 150
192 53.3 142.8
150-350A 150 90 25 145.6 70 2900 90 5.2
150 41.7 142
180 50 134.8
150-350B 150 84 23.3 138.6 65 2900 75 5.5
140 39 135 76
168 46.7 127.8 74
150-400 150 140 38.9 53 68 1450 45 3.5
200 55.6 50 75
260 72.2 44 71
150-400A 150 131 36.4 46.6 67 1450 37 3.5
187 51.9 44 74
243 67.5 38.3 70
150-400B 150 122 33.9 40 73 1450 30 3.5
174 48.3 38
226.5 62.9 33
150-400C 150 112 31.1 34 71 1450 22 3.5
160 44.4 32
208 57.8 28
150-250(I) 150 120 33.3 87 65 2900 75 4.5
200 55.6 80 76
240 66.7 72 74
150-250(I)A 150 112 31.1 76 64 2900 55 4.5
187 51.9 70 75
224 62.2 63 73
150-250(I)B 150 104 28.9 65 63 2900 45 4.5
173 48.1 60 74
208 57.8 54 72
150-315(I) 150 120 33.3 133 58 2900 110 4.5
200 55.6 125 73
240 66.7 120 75
150-315(I)A 150 112 31.1 116 57 2900 90 4.5
187 51.9 110 72
224 62.2 105 74
150-315(I)B 150 104 28.9 100 55 2900 75 4.5
173 48.1 95 70
208 57.8 91 72
200-200 200 140 38.9 13.8 68 1450 15 3
200 55.6 12.5 78
260 72.2 10.6 78
200-200A 200 125 34.7 11 66 1450 11 3
179 49.7 10 76
232.5 64.6 8.5 76
200-250 200 140 21.8 21.8 73 1450 18.5 3
200 20 20 79
260 17 17 77
200-250A 200 129 18.5 18.5 72 1450 15 3
184.4 17 17 78
240 14.4 14.4 76
200-250B 200 117 15.2 15.2 76 1450 11 3
167 14 14
217.5 12 12
200-315 200 140 33.8 33.8 70 1450 30 3.5
200 32 32 78
260 28 28 78
200-315A 200 131 29.5 29.5 69 1450 22 3.5
189 28 28 77
243 24.5 24.5 77
200-315B 200 121 25 25 76 1450 18.5 3.5
173 24 24
225 21 21
200-400 200 140 53 53 68 1450 45 3.5
200 50 50 75
260 44 44 71
200-400A 200 131 46.6 46.6 67 1450 37 3.5
187 44 44 74
243 38.3 38.3 70
200-400B 200 122 40 40 73 1450 30 3.5
174 38 38
226.5 33 33
200-400C 200 112 34 34 71 1450 22 3.5
160 32 32
208 28 28
200-200(I) 200 280 77.8 13.4 70 1450 22 4
400 111.1 12.5 80
520 144 10.5 79
200-200(I)A 200 250 69.4 10.7 68 1450 18.5 4
358 90.4 10 73
465 129.2 8.5 77
200-250(I) 200 280 77.8 22.2 75 1450 30 4
400 111.1 20 80
520 144 14 72
200-250(I)A 200 250 69.4 18 73 1450 22 4
358 99.4 16 78
465 129.2 11.2 70
200-250(I)B 200 226 62.8 14.4 70 1450 18.5 4
322 89.4 13 75
419 116.4 7.3 67
200-315(I) 200 280 77.8 36 73 1450 55 4
400 111.4 32 80
520 144 26 75
200-315(I)A 200 262 72.8 31.5 72 1450 45 4
374 103.9 28 79
486 135 23 74
200-315(I)B 200 242 67.3 27 78 1450 37 4
346 96.1 24
450 125 19.5
200-400(I) 200 280 77.8 54.5 75 1450 75 4
400 111.4 50 81
520 144 39 77
200-400(I)A 200 262 72.8 48 80 1450 75 4
374 103.9 44
486 135 34
200-400(I)B 200 242 67.2 41.4 78 1450 55 5
346 96.1 38
450 125 29.6
200-400(I)C 200 224 62.2 34.9 76 1450 45 5
320 88.9 32
416 115.6 25
250-250 250 350 97.2 22 78 1450 45 5
550 152.8 20 82
650 180.5 16 81
250-250A 250 300 83.3 18.3 76 1450 37 5
500 139 17 80
600 166.7 14 80
250-235 250 300 83.3 14 73 1480 22 4.5
500 139 12.5 78
600 166.7 11 70
250-300 250 300 83.3 22 78 1480 37 4.5
500 139 20
600 166.7 16
250-315 250 350 97.2 34 76 1450 75 5.5
550 152.8 32 80
650 180.5 28 79
250-315A 250 300 83.3 29.5 74 1450 55 5.5
500 139 28 78
600 166.7 24 77
250-315B 250 260 72.2 25 70 1450 45 5.5
450 125 24 74
520 144.4 20 72
250-400 250 300 83.3 54.5 72 1480 90 4.5
500 139 50
600 166.7 39
300-235 300 480 133.3 20 77 970 55 5
720 200 18 81
900 250 15.5 74
300-235A 300 438 121.7 16.5 75 970 45 5
607 182.5 15 79
821 228.1 13 72
300-235B 300 400 111.1 14 73 970 37 5
600 167 12.5 77
750 208.3 11 70
300-300 300 480 133.3 31 77 970 75 5
720 200 28 81
900 250 25 77
300-300A 300 444 123.3 26.5 76 970 75 5
666 185 24 80
833 231.4 21.5 76
300-300B 300 415 115.3 23 79 970 55 5
623 173.1 21
779 261.4 18.5
300-380 300 480 133.3 48 84 970 132 5
720 200 44
900 250 34
300-380A 300 444 123.3 41.4 80 970 110 5
666 185 38
833 231.4 30
300-380B 300 409 113.6 35 78 970 90 5
614 170.6 32
767 213.1 25
300-235(I) 300 718 199.4 44.6 82 1450 160 5.5
1080 300 40
1345 373.6 34.6
300-235(I)A 300 642 178.3 35.7 80 1450 132 5.5
965 268.1 32
1203 334.2 27.7

more info
    COPYRIGHT © KENSHINE PUMP&VALVE MANUFACTURING CO.,LTD. Home  |  About us  |  Products  |  News  |  Contact us
    Tel: 0086-21-33592713 54401087  Fax:0086-21-33592713  Email: sales@kenshine-pump.com   Webdesign: Kucom   沪ICP备09050665号
