Summary:

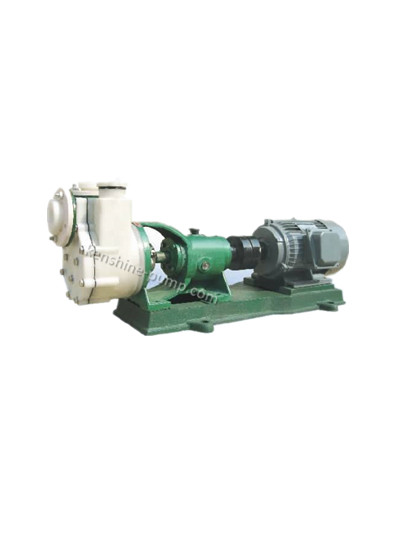

FZB,FZB-L Series fluoroplastic self priming centrifugal pump
FZB
series fluoroplastic self-priming pumps are manufactured according to the
international standard combined with the process design of non-metal pumps.

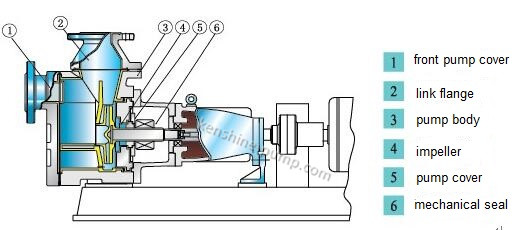

Pump body is made of a metal case lining fluoride plastic and flow components
are all made of fluoroplastic alloy. It means that pump cover, impeller, etc
are made of metal lined with fluorine plastic .
Shaft
seal is for bellows mechanical seal fitted outside type and static ring is
99.9% alumina ceramic (or silicon nitride)and dynamic ring is for fluorine
filling materials. The seal is as the good mechanical seal corrosion resistance
and wearing resistance.
Pump
inlet and outlet adopts cast steel body to enhance the pressure resistance of
the pump.
Practical
application shows that the self-priming pump has the advantages of corrosion
resistance, wear resistance, high temperature resistance, non-aging, high
mechanical strength, smooth operation, advanced and reasonable structure,
strict and reliable sealing performance, convenient disassembly and
maintenance, long service life and so on.
FZB Series fluoroplastic self priming
pump has the self suction performance and the suction height is for 2meters to
4meters. It can be used to transfer the liquid below the pump installation
level.
FZB Series pump is suitable to
transfer strong acids, strong alkali organic
solvents, and pure and valuable chemical media,
Operation temperature: -20 to 120 degree Celsius.
|
